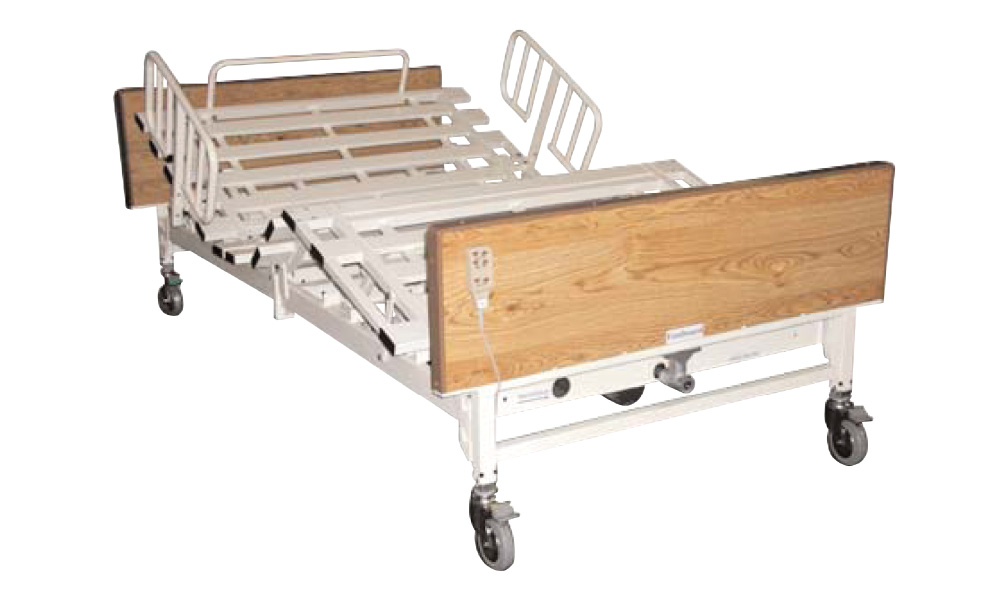

MemoryCare™ 1000 (1000lb weight capacity)

Electric Hi-Lo, 8 way Function, Rehabilitation Bariatric Bed Frame.

HCPCS Code: E0303

MODEL

FULL ELECTRIC

WEIGHT CAPACITY

BED FRAME HEIGHT

SLEEP SURFACE WxL

OVERALL BED FRAME

FRAME L w/ OPTIONAL 4" EXTENDER

MP5054

Yes

1000 lbs

Hi 25" Lo 17"

54" x 80"

54" x 88"

92"

MP5060

Yes

1000 lbs

Hi 25" Lo 17"

60" x 80"

60" x 88"

92"

Hi-Lo electric bed frame height 25"-17" (without support surface with Memory Care™ sleep surface add 8")
Memory Care™ Bariatric sleep surface included with purchase of bed frame
UL approved 8-way, low voltage DC electronic system provides quiet and smooth operation with battery back up standard (batteries not included). Manual hand crank also standard with bed
Trendelenburg and reverse trendelenburg position can be easily achieved, standard feature
Weight Capacity: MP5054 and MP5060: 1,000 lbs. HCPCS Code: E0550
Welded rectangular steel, rectangular construction with reinforced corner plates provide maximum stability. Aluminum alloy bed surface has the same strength but weights 30% less
Two piece split-frame design is easy to use, set up and operate
Specially designed end panels resistant to impact and scratching
6" inch swivel, locking casters provide increased security
Half Side Rails standard (additional set optional)
Fits 80" long Sleep surface, 4" bed extender available to extend bed to 84" optional

MemoryCare™ 600 (600lb weight capacity)

Electric Hi-Lo, 8 way Function, Rehabilitation Bariatric Bed Frame.

HCPCS Code: E0303

MODEL

FULL ELECTRIC

WEIGHT CAPACITY

BED FRAME HEIGHT

SLEEP SURFACE WxL

OVERALL BED FRAME

FRAME L w/ OPTIONAL 4" EXTENDER

MP3020

Yes

600 lbs

Hi 24" Lo 16"

42" x 80"

42" x 88"

92"

Hi-Lo Electric bed frame height 24"-16" (without support surface, with Memory Care™ sleep surface add 8")
Memory Care™ Bariatric sleep surface included with purchase of bed frame
UL approved 8-way, low voltage DC electronic system provides quiet and smooth operation with battery back up standard (batteries not included)
Trendelenburg and reverse trendelenburg position can be easily achieved, standard feature
Welded angle steel, rectangular construction with reinforced corner plates provide maximum stability
Two piece split-frame design is easy to use, set up and operate
Specially designed end panels resistant to impact and scratching
5" inch swivel, locking casters provide increased security
Half Side Rails standard (additional set optional)
Fits 80" long sleep surface. 4" Optional bed extender available to extend bed to 84"

MemoryCare™ 460 (460lb weight capacity)

Electric Hi-Lo, 8 way Function, Rehabilitation Bariatric Bed Frame.

HCPCS Code: E0297

MODEL

FULL ELECTRIC

WEIGHT CAPACITY

BED FRAME HEIGHT

SLEEP SURFACE WxL

OVERALL BED FRAME

FRAME L w/ OPTIONAL 4" EXTENDER

MP3020

Yes

460 lbs

Hi 24" Lo 16"

42" x 80"

42" x 88"

92"

Hi-Lo Electric bed frame height 24"-16" (without mattress, with Memory Care™ sleep surface add 8".
Memory Care™ Bariatric sleep surface included with purchase of bed frame
UL approved 8-way, low voltage DC electronic system provides quiet and smooth operation with battery back up standard (batteries not included)
Trendelenburg and reverse trendelenburg position can be easily achieved, standard feature
Welded angle steel, rectangular construction with reinforced corner plates provide maximum stability
Two piece split-frame design is easy to use, set up and operate
Specially designed end panels resistant to impact and scratching
3" inch swivel, locking casters provide increased security
Half Side rails standard (additional set optional)
Fits 80" long Sleep Surface. Optional 4" bed extender available to extend bed to 84"

Please contact us today to let us know how Teale Medical can help your institution.
